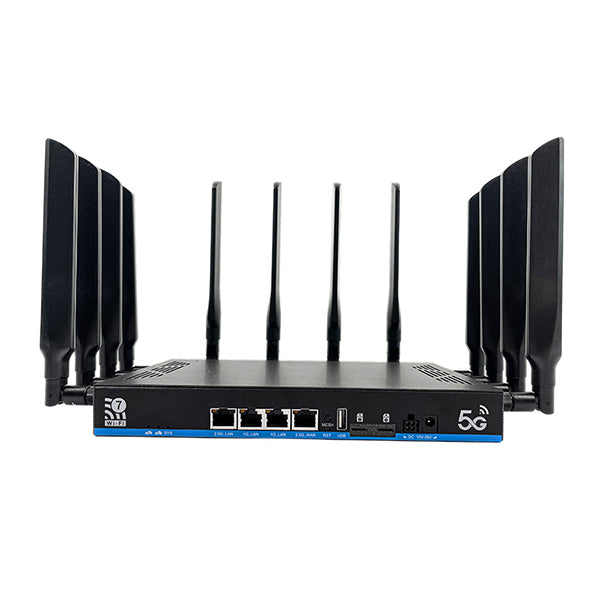

Z8806BE-T — Pro Deployment WiFi 7 Router, 12 Detachable Antennas & 5G Ready

Name: Z8806BE-T — Pro Deployment WiFi 7 Router, 12 Detachable Antennas & 5G Ready
Brand: ZBT-5G
Availability: OutOfStock

Protocol – IEEE802.11n/g/b/a/ac/ax/be

Wi-Fi Rate – MAX 19000Mbps

Interface – 1×2.5Gbps WAN port, 1×2.5Gbps LAN port, 2×1Gbps LAN Ports

Port – DC 5.5×2.1MM, 1×USB 2.0 Port, 1×4 PIN Port

Button – 1× Reset Button, 1×Mesh Button

Module Slot – 2×M.2 Slots

SIM Card Slot – 2×Nano SIM card slot

Antenna – 12×Detachable External Antenna

OEM & ODM Router Solutions

Hardware. Firmware. Software. One OEM/ODM Partner.

WhatsApp Contact

View Full Details

Wi-Fi 7 Tri-Band Gateway — Built for High-Demand Connections

Buffering during video calls. Lag spikes mid-game. A network that buckles the moment everyone logs on. These aren’t just frustrations — they’re productivity killers. The ZBT Z8806BE-T is built to eliminate them, delivering Wi-Fi 7 tri-band performance, 12 detachable antennas, and dual 5G failover for homes and businesses that demand always-on connectivity.

Why Choose Z8806BE-T?

Wi-Fi Performance

Up to 19,000 Mbps

Wi-Fi 7 (802.11be) tri-band — work, gaming, streaming and more without slowdowns

Multi-Device Performance

Handles Every Device

MT7988AV quad-core 1.8GHz processor keeps all connected devices running smoothly

Coverage

12 Detachable Antennas

2.4G + 5.8G + 6G independent radios — deep signal penetration through walls and floors

Wired Backbone

2.5G WAN + LAN

1×2.5Gbps WAN + 1×2.5Gbps LAN + 2×1Gbps LAN — high-speed wired networking built in

5G Failover

Dual M.2 + Dual SIM

Automatic 5G/4G backup when wired broadband drops — stay online without interruption

Expandability

Mesh + USB + PIN

Mesh button for easy network extension, USB 2.0 and 4-PIN port for flexible peripheral use

Who It’s For

Remote workers who need a rock-solid connection for video calls and cloud apps. Households where gaming, streaming, and work all happen at once. Small businesses that need enterprise-grade coverage without enterprise complexity. ODM and OEM partners looking for a proven Wi-Fi 7 platform to build on.

Engineered on ZBT’s enterprise networking platform — the same foundation trusted by businesses and ODM partners worldwide — now designed for high-demand homes and small businesses alike.

Faster connections. A brighter tomorrow.

Product Specifications

Specification Name	Specification Value
CPU	Adopt MT7988AV Main Chipset, ARM Cortex-A73 Quad-core CPU, 1.8GHZ Frequency
WiFi Chip	AP routing network NIC chip MT7996AV / 2.4G Wifi: MT7976GN / 5.8G Wifi: MT7977BN / 6G Wifi: MT7977AN. Protocol: IEEE802.11n/g/b/a/ac/ax/be. Wi-Fi Rate: MAX 19000Mbps
RAM	1GB DDR4
Flash	128MB SPI NAND Flash
LAN Port	12.5Gbps WAN port, 12.5Gbps LAN port, 2*1Gbps LAN Ports
Color	Port: DC 5.52.1MM, 1USB 2.0 Port, 14 PIN Port. Button: 1 Reset Button, 1Mesh Button. Module Slot: 2M.2 Slots. SIM Card Slot: 2Nano SIM card slot. Antenna: 12Detachable External Antenna
Dimensions (L×W×H)

Documents

User Manual Download

Specification Sheet Download

Safety Guide Download

Service & Support

Service & Support

Inquiry-Within 24 hours
Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

Solution Development-1-3 days
We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

Engineering Design-3-7 days
Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

Prototyping and Testing-7-15 days
We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

Customization-3-10 days
Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

Mass Production-15-30 days
Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

Delivery and Support-Ongoing support
Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
