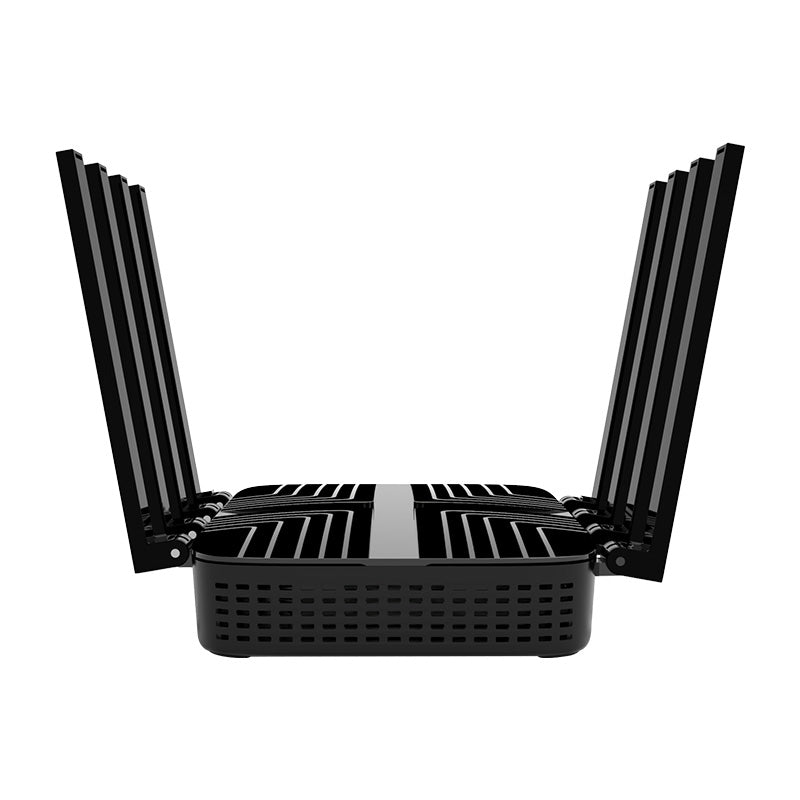

Z8803BE-S — Dual SIM WiFi 7 Router, 19Gbps Tri-Band Industrial Grade

Name: Z8803BE-S — Dual SIM WiFi 7 Router, 19Gbps Tri-Band Industrial Grade
Brand: ZBT-5G
Availability: OutOfStock

WiFi 6 OFDMA & MU-MIMO: 1024-QAM (2.4G) / 4096-QAM (5.8G), 2T2R / 2T3R

OpenWRT Compatible: Full support for ZBT OS and OpenWRT firmware

Protocol: IEEE 802.11n/g/b/a/ac/ax/be

Wi-Fi Rate: MAX 19000Mbps

Wi-Fi Standard: WiFi 7 (802.11be) Tri-Band with OFDMA & MU-MIMO | 2.4G: 1024-QAM 2T2R / 5.8G & 6G: 4096-QAM

Port: DC 5.5×2.1MM, 1×USB 2.0 Port

Button: 1×Reset Button, 1×Mesh Button

Module Slot: 2×M.2 Slots

OEM & ODM Router Solutions

Hardware. Firmware. Software. One OEM/ODM Partner.

WhatsApp Contact

View Full Details

The Next Generation of Enterprise Wireless — WiFi 7 is Here

Legacy WiFi 6 can’t keep up with modern enterprise demands. Congested airwaves, bottlenecked backhaul, and cellular dead zones cost businesses productivity every day. The ZBT Z8803BE-S changes that: a tri-band WiFi 7 platform with up to 19Gbps total throughput, 2×M.2 5G module slots, dual Nano SIM failover, and a 2.5G WAN + 10G SFP port — built for the networks enterprises actually need.

Why Choose Z8803BE-S?

WiFi 7 Speed

MAX 19,000Mbps

Tri-band 802.11be — 2.4G + 5.8G + 6G simultaneous, lowest latency ever

Processor

MT7988AV ARM Cortex-A73

Quad-core 1.8GHz + 1GB DDR4 RAM + 128MB SPI NAND Flash

High-Speed Ports

2.5G WAN + 10G SFP

1×2.5Gbps WAN + 1×10G SFP + 3×1Gbps LAN — fiber and copper ready

5G Module Slots

2× M.2 Slots (X72/X75)

Dual M.2 for 5G modules + 2× Nano SIM failover — always-on cellular backup

Dual SIM Failover

2× Nano SIM Card Slots

Automatic carrier switching — zero-downtime connectivity for critical operations

Antennas

8× External Non-Detachable

Optimized for tri-band WiFi 7 — maximum coverage across large enterprise spaces

Who It’s For

Enterprise IT teams standardizing on WiFi 7 for high-density environments. ISPs deploying next-generation CPE with built-in 5G fallback. Data centers and server rooms needing 10G SFP uplink capability. System integrators building future-proof networks that won’t need replacement in two years.

The Z8803BE-S is built on ZBT’s industrial-grade platform — trusted by OEM/ODM partners across 50+ countries. Available with custom firmware, hardware configurations, and branding from prototype to mass production.

WiFi 7. 5G Ready. Enterprise-grade. Built to last.

Product Specifications

Specification Name	Specification Value
CPU	Adopt MT7988AV Main Chipset, ARM Cortex-A73 Quad-core CPU, 1.8GHz Frequency
WiFi Chip	AP routing network NIC chip MT7996AV / 2.4G WiFi: MT7976GN / 5.8G WiFi: MT7977BN / 6G WiFi: MT7977ANProtocol: IEEE802.11n/g/b/a/ac/ax/beWi-Fi Rate: MAX 19000Mbps
RAM	1GB DDR4
Flash	128MB SPI NAND Flash
LAN Port	12.5Gbps WAN Port, 110G SFP Port, 31Gbps LAN PortsDC 5.52.1MM, 1*USB 2.0 Port
Color	1* Reset Button, 1Mesh Button2M.2 Slots2Nano SIM card slot8External Antenna, non-detachable
Dimensions (L×W×H)	Not specified

Documents

User Manual Download

Specification Sheet Download

Safety Guide Download

Service & Support

Inquiry-Within 24 hours
Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

Solution Development-1-3 days
We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

Engineering Design-3-7 days
Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

Prototyping and Testing-7-15 days
We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

Customization-3-10 days
Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

Mass Production-15-30 days
Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

Delivery and Support-Ongoing support
Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
