    Z8105AX-M2-T — Reliable 5G CPE, WiFi 6 AX3000 & 8-Antenna Design for Wide Coverage

    Protocol: IEEE 802.11n/g/b/a/ac/ax

    Wi-Fi Rate: 2.4GHz MAX 573Mbps + 5.8GHz MAX 2402Mbps / Total 2975Mbps

    Port: DC 5.5×2.1MM

    Module Slot: 2×M.2 Slots, Supports USB 3.0 BUS | SIM Card Slot: 2×Standard SIM card slot

    Antenna: 8×Detachable High Gain SMA Antennas | Button: 1×Reset Button, 1×Mesh Button

    OEM & ODM Router Solutions

    Hardware. Firmware. Software. One OEM/ODM Partner.

      WhatsApp Contact
      View Full Details
      1 / 1
      Product DetailsFAQsRelated ProductsRecently Viewed

      5G Wi-Fi 6 Industrial Router — Built for Every Scenario

      Construction sites with no fixed broadband. Factories running IoT automation. Outdoor deployments that can’t afford a dropped signal. The ZBT Z8105AX-M2-T is engineered for all of them — delivering 5G/4G dual-SIM failover, AX1800 Wi-Fi 6, and industrial-grade reliability across the most demanding environments.

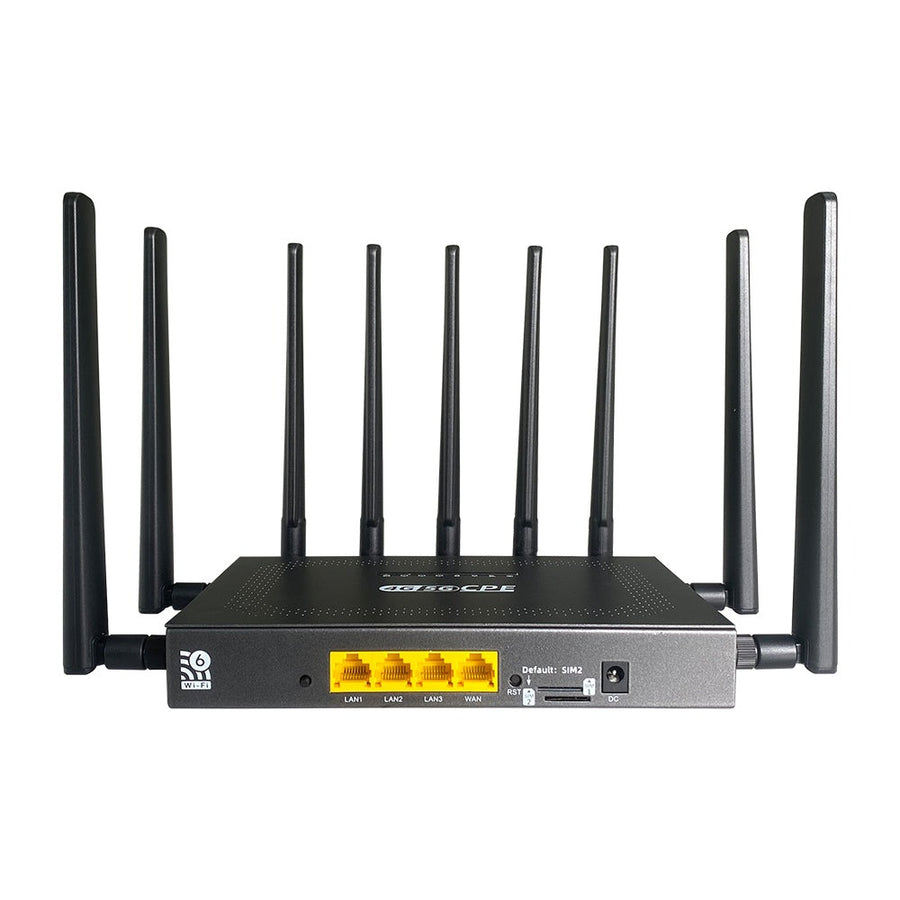

      ZBT Z8105AX-M2-T 5G Wi-Fi 6 Industrial Router

      Why Choose Z8105AX-M2-T?

      5G / 4G
      Dual SIM Failover
      2×Standard SIM — auto-switches carriers to keep operations online without interruption
      Wi-Fi 6
      AX1800 — 2,975 Mbps
      802.11ax dual-band — high-throughput wireless for devices across any industrial site
      Coverage
      8 SMA Antennas
      8× detachable high-gain SMA — wide, stable coverage outdoors and across large spaces
      Expandability
      Dual M.2 + USB 3.0
      2×M.2 (USB 3.0 BUS) — supports major 5G/4G modules for flexible carrier deployment
      Wired Ports
      1G WAN + 3×1G LAN
      Four Gigabit ports — wired access for cameras, PLCs, and site equipment
      Processing
      MT7981B Dual-Core 1.3GHz
      ARM Cortex-A53 + 256MB DDR3 — reliable routing under concurrent industrial workloads

      Who It’s For

      Construction teams needing temporary networks on-site. Outdoor travelers and mobile workers who need private 5G internet anywhere. Smart factory operators running IoT automation and machine connectivity. Remote area surveillance teams requiring always-on monitoring links.

      Built on ZBT’s enterprise networking platform — trusted by industrial operators and ODM partners worldwide — ready for the environments that demand the most.

      Industrial-grade. Multi-scenario. Always ready.

      Product Specifications
      CPU Main Chipset: MT7981B ARM Cortex-A53 Dual Core CPU, 1.3GHz Frequency, WIFI Chipset MT7976CN
      WiFi Chip MT7976CN; IEEE 802.11n/g/b/a/ac/ax; 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps
      RAM DDR3 256MB
      Flash SPI NAND Flash 128MB / eMMC no support
      LAN Port 1*1000Mbps WAN Port, 3*1000Mbps LAN Ports
      Color DC 5.5*2.1MM; 1* Reset Button, 1*Mesh Button
      Dimensions (L×W×H) 2*M.2 Slots, Supports USB 3.0 BUS; 2*Standard SIM card slots; 8*Internal FPC Antenna
      Documents
      User Manual Download
      Specification Sheet Download
      Safety Guide Download

      Service & Support

      Inquiry-Within 24 hours
      Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

      Solution Development-1-3 days
      We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

      Engineering Design-3-7 days
      Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

      Prototyping and Testing-7-15 days
      We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

      Customization-3-10 days
      Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

      Mass Production-15-30 days
      Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

      Delivery and Support-Ongoing support
      Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
