    • ZBT Z8102AX-M2-T 5G Wi-Fi 6 Industrial Router

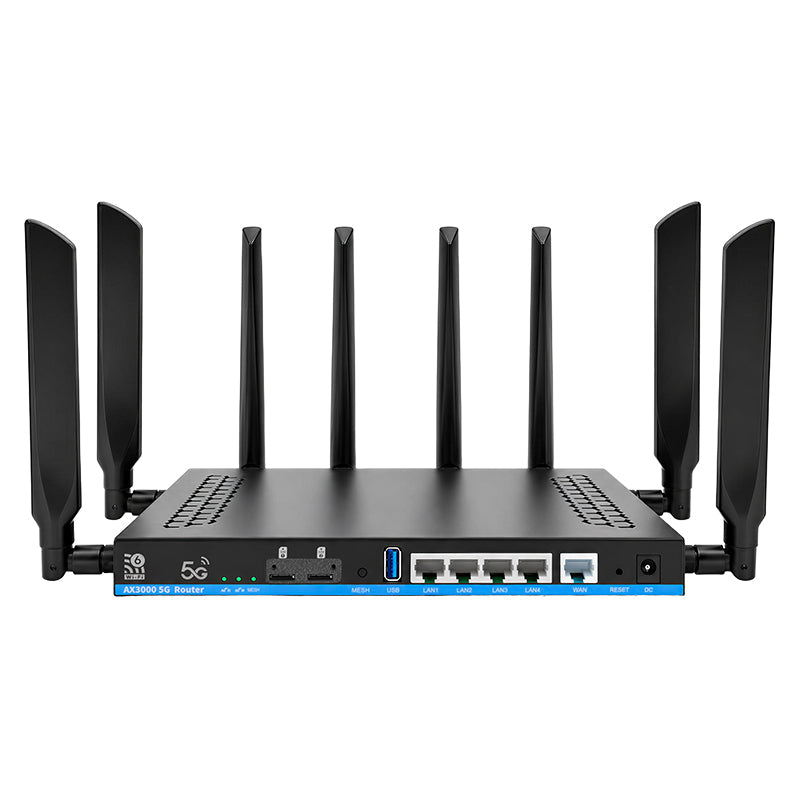

    Z8102AX-M2-T — AX3000 WiFi 6 Router, 12 High-Gain Antennas & Dual SIM + eSIM

    Protocol: IEEE 802.11n/g/b/a/ac/ax

    Wi-Fi Rate: 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps — Total 2975Mbps

    Interface: 1 × 1000Mbps WAN Port, 4 × 1000Mbps LAN Ports

    Power Port: DC 5.5 × 2.1MM

    Buttons: 1 × Reset Button, 1 × Mesh Button

    Module Slot: 2 × M.2 Slots, Supports USB 3.0 BUS

    SIM Card Slot: 2 × Nano SIM Card Slot, 2 × eSIM (6×8mm) Card Slot

    Antenna: 12 × Detachable High Gain SMA Antennas

    OEM & ODM Router Solutions

    Hardware. Firmware. Software. One OEM/ODM Partner.

      WhatsApp Contact
      View Full Details
      • ZBT Z8102AX-M2-T 5G Wi-Fi 6 Industrial Router
      1 / 1
      Product DetailsFAQsRelated ProductsRecently Viewed

      5G Wi-Fi 6 Industrial Router — High Speed. Stable Connection. Wide Coverage.

      Harsh environments. Unreliable cellular signals. Networks that need to keep running no matter what. Industrial deployments demand more than a consumer router can offer. The ZBT Z8102AX-M2-T is built for exactly these conditions — combining 5G/4G dual-SIM resilience, AX1800 Wi-Fi 6, and 12 high-gain SMA antennas for industrial-grade connectivity across factories, outdoor sites, and IoT deployments.

      ZBT Z8102AX-M2-T 5G Wi-Fi 6 Industrial Router

      Why Choose Z8102AX-M2-T?

      5G / 4G
      Dual SIM Resilience
      2×Nano SIM + 2×eSIM — automatic failover keeps industrial operations always connected
      Wi-Fi 6
      AX1800 — 2,975 Mbps
      802.11ax dual-band — high throughput for multiple industrial devices simultaneously
      Coverage
      12 SMA Antennas
      12× detachable high-gain SMA antennas — wide, stable coverage across large industrial spaces
      Expandability
      Dual M.2 + USB 3.0
      2×M.2 slots (USB 3.0 BUS) — supports leading 5G/4G modules for flexible deployment
      Wired Ports
      1G WAN + 4×1G LAN
      Five Gigabit ports — reliable wired connectivity for PLCs, cameras, and IoT gateways
      Processing
      MT7981B Dual-Core 1.3GHz
      ARM Cortex-A53 + 1GB DDR4 — handles concurrent data streams and IoT workloads reliably

      Who It’s For

      Industrial operations teams running connected machinery across factories and warehouses. Field deployments in outdoor or remote locations with no fixed broadband. IoT infrastructure projects requiring stable, multi-device connectivity. Carriers and ODM partners needing a rugged, proven 5G + Wi-Fi 6 gateway platform.

      Built on ZBT’s enterprise networking platform — trusted by industrial operators and ODM partners worldwide — engineered for environments where connectivity failure isn’t an option.

      Industrial-grade. Always on. Built to last.

      Product Specifications
      CPU Main Chipset: MT7981B ARM Cortex-A53 Dual Core CPU, 1.3GHz Frequency
      WiFi Chip MT7976CN; IEEE 802.11n/g/b/a/ac/ax; 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps
      RAM DDR4 1GB
      Flash SPI NAND Flash 128MB / Support eMMC (Option 8GB, 256GB)
      LAN Port 1*1000Mbps WAN Port, 4*1000Mbps LAN Ports; DC 5.5*2.1MM; 1* Reset Button, 1*Mesh Button; 2*M.2 Slots, Supports USB 3.0 BUS; 2*Nano SIM Card Slot, 2*eSIM(6*8mm) card slot; 8*Detachable High Gain SMA Antennas
      Color Attribute value
      Dimensions (L×W×H) Attribute value
      Documents
      User Manual Download
      Specification Sheet Download
      Safety Guide Download

      Service & Support

      Inquiry-Within 24 hours
      Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

      Solution Development-1-3 days
      We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

      Engineering Design-3-7 days
      Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

      Prototyping and Testing-7-15 days
      We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

      Customization-3-10 days
      Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

      Mass Production-15-30 days
      Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

      Delivery and Support-Ongoing support
      Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
