    Z8102AX-M2-S — 5G CPE WiFi 6 Router, ARM Cortex-A53 & Dual SIM + eSIM

    Protocol — IEEE 802.11n/g/b/a/ac/ax

    Wi-Fi Rate — 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps

    WAN Port — 1×1000Mbps

    Button — Reset + Mesh

    Module Slot — 2×M.2 + USB 3.0

    SIM Card Slot — 2× Standard + 2× eSIM

    Antenna — 8× Non-detachable High Gain

    OEM & ODM Router Solutions

    Hardware. Firmware. Software. One OEM/ODM Partner.

      WhatsApp Contact
      View Full Details
      1 / 1
      Product DetailsFAQsRelated ProductsRecently Viewed

      A High-Performance 4G LTE & Wi-Fi 6 Router

      Unreliable internet. Connections that drop when you need them most. Networks that need constant reboots to stay stable. The ZBT Z8102AX-M2-S solves all of this — combining dual-SIM 4G LTE failover, AX3000 Wi-Fi 6, Watchdog auto-recovery, and one-click Mesh in a single always-on router.

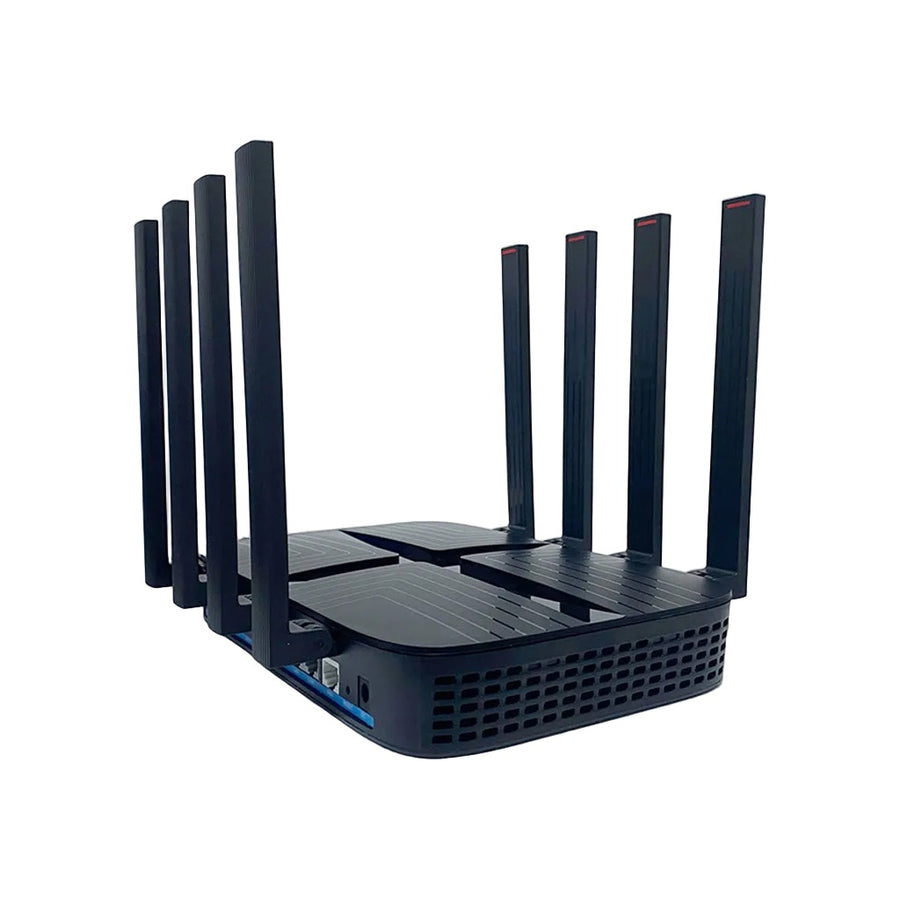

      ZBT Z8102AX-M2-S 4G LTE Wi-Fi 6 Router

      Why Choose Z8102AX-M2-S?

      4G LTE
      Dual SIM Failover
      Always online — switches to backup SIM when broadband drops
      Wi-Fi 6
      AX3000 — 2,975 Mbps
      Dual-band — smooth streaming, gaming & calls simultaneously
      Stability
      Watchdog Protection
      Auto-restarts on failure — 24/7 uptime, no manual reboots
      Coverage
      One-Click Mesh
      Extend coverage instantly — no dead zones, no complex setup
      Expandability
      Dual M.2 + eSIM
      2×M.2 + 2×SIM + 2×eSIM — flexible multi-carrier configuration
      Wired Ports
      1G WAN + 4×1G LAN
      Five Gigabit ports — reliable wired access for desktops, NAS & more

      Who It’s For

      Households that need rock-solid internet for remote work, streaming, and gaming. Small businesses that can’t afford downtime. Users in areas with unreliable fixed broadband who need 4G LTE as a backup. ODM and OEM partners looking for a proven Wi-Fi 6 + 4G platform.

      Built on ZBT’s enterprise networking platform — trusted by businesses and ODM partners worldwide — now optimized for homes and small offices that demand reliability without compromise.

      High-speed. Self-healing. Always on.

      Product Specifications
      CPU Main Chipset: MT7981B ARM Cortex-A53 Dual Core CPU, 1.3GHz Frequency
      WiFi Chip WiFi Chipset: MT7976CNProtocol: IEEE 802.11n/g/b/a/ac/axWi-Fi Rate: 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps
      RAM DDR4 1GB
      Flash SPI NAND Flash 128MB / Supports eMMC (Option: 8GB, 256GB)
      LAN Port Interface: 1*1000Mbps WAN Port, 4*1000Mbps LAN PortsPort: DC 5.5*2.1MM
      Color Not specified in the provided General Specification.
      Dimensions (L×W×H) Button: 1* Reset Button, 1* Mesh ButtonModule Slot: 2*M.2 Slots, Supports USB 3.0 BUSSIM Card Slot: 2*Standard SIM card slot, 2*eSIM (6*8mm) card slotAntenna: 8*Non-detachable High Gain Antennas
      Documents
      User Manual Download
      Specification Sheet Download
      Safety Guide Download

      Service & Support

      Inquiry-Within 24 hours
      Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

      Solution Development-1-3 days
      We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

      Engineering Design-3-7 days
      Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

      Prototyping and Testing-7-15 days
      We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

      Customization-3-10 days
      Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

      Mass Production-15-30 days
      Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

      Delivery and Support-Ongoing support
      Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.

      Business Cooperation

      We support ODM & OEM customization. Please share your project requirements and our team will respond within 24 hours.
