• ZBT Z8102AX-M2-A-T Multi-Site Remote Connectivity Router
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
    • ZBT Z8102AX-M2-A-T Multi-Site Remote Connectivity Router

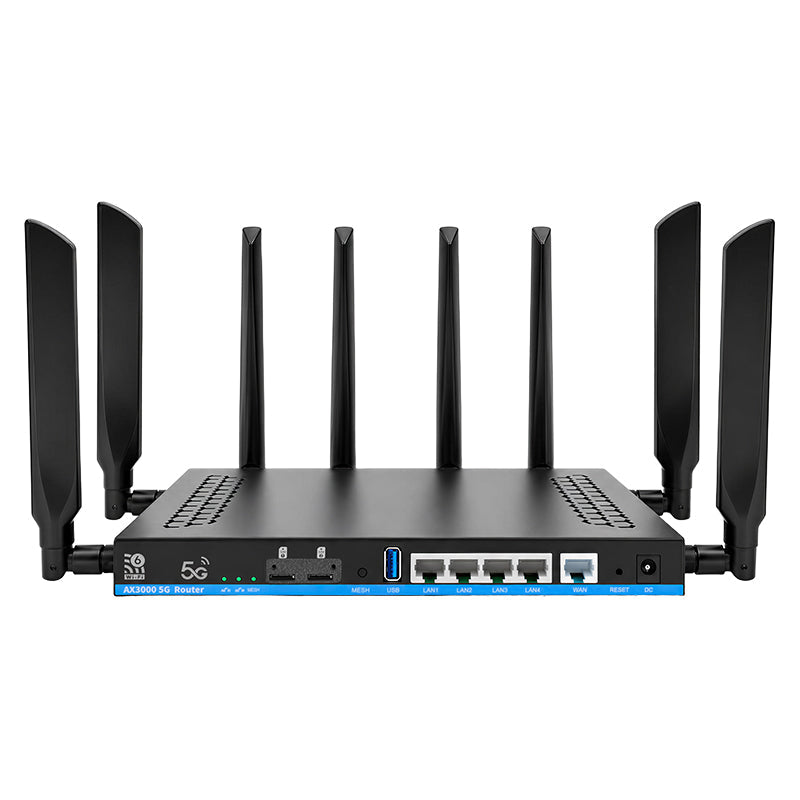

    Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM

    Protocol: IEEE 802.11n/g/b/a/ac/ax

    Wi-Fi Rate: 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps

    Interface: 1×1000Mbps WAN Port, 4×1000Mbps LAN Ports

    Port: DC 5.5×2.1MM

    Button: 1× Reset Button, 1×Mesh Button

    Module Slot: 2×M.2 Slots, Supports USB 3.0 BUS

    SIM Card Slot: 2×Nano SIM Card Slot, 2×eSIM(6×8mm) card slot

    Antenna: 8×Detachable High Gain SMA Antennas

    OEM & ODM Router Solutions

    Hardware. Firmware. Software. One OEM/ODM Partner.

      WhatsApp Contact
      View Full Details
      • ZBT Z8102AX-M2-A-T Multi-Site Remote Connectivity Router
      1 / 1
      Product DetailsFAQsRelated ProductsRecently Viewed

      Multi-Site & Remote Connectivity — Connect Every Site. Wherever Business Takes You.

      Branch offices going offline. Warehouses losing connectivity mid-shift. Remote facilities that IT can’t reach in time. Managing distributed sites shouldn’t mean constant firefighting. The ZBT Z8102AX-M2-A-T keeps every site connected — with 4G/5G dual-SIM failover, AX3000 Wi-Fi 6, and cloud management that lets you monitor and control your entire network from headquarters.

      ZBT Z8102AX-M2-A-T Multi-Site Remote Connectivity Router

      Why Choose Z8102AX-M2-A-T?

      4G / 5G
      Dual SIM Failover
      2×Nano SIM + 2×eSIM — automatic backup keeps every site online when wired links drop
      Wi-Fi 6
      AX3000 — 2,975 Mbps
      802.11ax dual-band — fast, reliable wireless for branch offices, warehouses and field sites
      Management
      Cloud & Remote Control
      Manage all sites from headquarters — monitor status, push config, and troubleshoot remotely
      Coverage
      8 High-Gain SMA Antennas
      8× detachable SMA antennas — strong signal across branch offices, warehouses and outdoor sites
      Wired Ports
      1G WAN + 4×1G LAN
      Five Gigabit ports — wired access for desktops, NAS, IP cameras and local devices
      Processing
      MT7981B Dual-Core 1.3GHz
      ARM Cortex-A53 + 1GB DDR4 — handles multi-site routing and concurrent VPN tunnels reliably

      Who It’s For

      Enterprise IT teams managing connectivity across multiple branch offices. Retail chains and logistics operators that need every site online without exception. Construction companies and remote facilities requiring reliable internet wherever work happens. Carriers and ODM partners looking for a proven, cloud-manageable multi-site router platform.

      Built on ZBT’s enterprise networking platform — trusted by businesses and ODM partners worldwide — engineered to keep distributed operations connected, managed, and in control.

      Every site. Every time. Always connected.

      Product Specifications
      CPU Main Chipset: MT7981B ARM Cortex-A53 Dual Core CPU, 1.3GHz Frequency
      WiFi Chip MT7976CN; IEEE 802.11n/g/b/a/ac/ax; 2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps
      RAM DDR4 1GB
      Flash SPI NAND Flash 128MB; Support eMMC (Option 8GB, 256GB)
      LAN Port 1*1000Mbps WAN Port, 4*1000Mbps LAN Ports
      Color DC 5.5*2.1MM; 1* Reset Button, 1* Mesh Button
      Dimensions (L×W×H) 2*M.2 Slots, Supports USB 3.0 BUS; 2*Nano SIM Card Slot, 2*eSIM(6*8mm) card slot; 8*Detachable High Gain SMA Antennas
      Documents
      User Manual Download
      Specification Sheet Download
      Safety Guide Download

      Service & Support

      Inquiry-Within 24 hours
      Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

      Solution Development-1-3 days
      We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

      Engineering Design-3-7 days
      Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

      Prototyping and Testing-7-15 days
      We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

      Customization-3-10 days
      Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

      Mass Production-15-30 days
      Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

      Delivery and Support-Ongoing support
      Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
