    Z800AX-M2-T – WiFi 6 AX3549 5G Industrial Router, 12 Antennas & Dual SIM

    Protocol: IEEE 802.11n/g/b/a/ac/ax

    Wi-Fi Rate: 2.4GHz MAX 1147Mbps, 4T4R / 5.8GHz MAX 2402Mbps, 4T4R / MAX 3549Mbps

    Interface: 1×1000Mbps WAN Port, 4×1000Mbps LAN Ports

    Port: 1×DC 5.5×2.1MM Port

    Button: 1×Reset Button, 1×Mesh Button

    Module Slot: 1×M.2 Slot, Supports USB 3.0 BUS

    SIM Card Slot: 1×SIM Card Tray

    Antenna: 12×Detachable High Gain SMA Antennas

    OEM & ODM Router Solutions

    Hardware. Firmware. Software. One OEM/ODM Partner.

      WhatsApp Contact
      View Full Details
      1 / 1
      Product DetailsFAQsSolution PresentationRecently Viewed

      Stay Connected Anywhere — 5G/4G Wi-Fi 6 Industrial Router

      Dead zones on-site. Connections that drop under load. Networks that can’t keep up with industrial demands. The ZBT Z800AX-M2-T eliminates all of that — pairing a quad-core IPQ8072A platform with 5G/4G failover, AX1800 Wi-Fi 6, and 12 high-gain antennas for high-speed, wide-coverage connectivity wherever your operation runs.

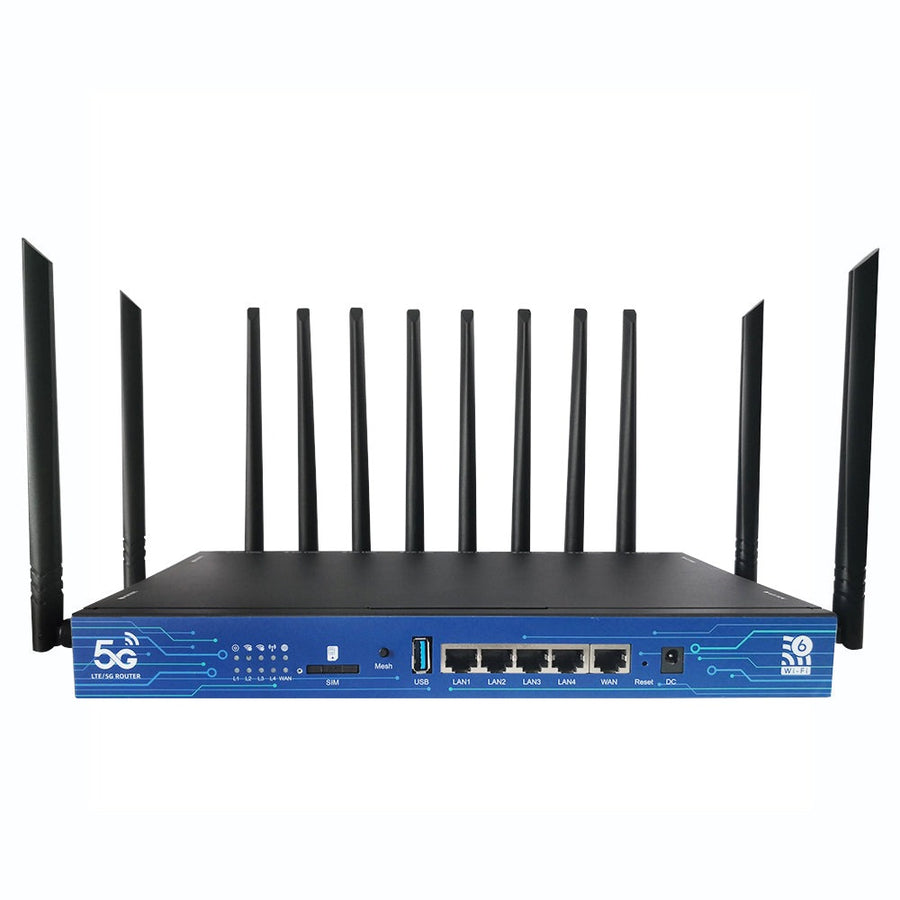

      ZBT Z800AX-M2-T 5G Wi-Fi 6 Industrial Router

      Why Choose Z800AX-M2-T?

      5G / 4G
      Dual SIM Failover
      1×SIM Card Tray — automatic 5G/4G backup keeps every site online without interruption
      Wi-Fi 6
      AX1800 — 3,549 Mbps
      802.11ax dual-band, 4T4R — high-throughput wireless for dense device environments
      Coverage
      12 SMA Antennas
      12× detachable high-gain SMA — wide, stable signal across large outdoor and indoor spaces
      Processing Power
      IPQ8072A Quad-Core 2.2GHz
      ARM Cortex-A53 + up to 1GB DDR4 — handles heavy routing, VPN, and multi-device loads
      Wired Ports
      1G WAN + 4×1G LAN
      Five Gigabit ports — reliable wired access for cameras, PLCs, and site devices
      Expandability
      1×M.2 + USB 3.0 BUS
      M.2 slot with USB 3.0 BUS support — compatible with leading 5G/4G modules

      Who It’s For

      Construction teams running temporary high-speed networks on-site. Outdoor travelers and mobile workers who need fast, private internet anywhere. Smart factory operators connecting IoT devices and automation systems. Remote surveillance teams that need always-on monitoring links across large areas.

      Built on ZBT’s enterprise networking platform — trusted by industrial operators and ODM partners worldwide — the Z800AX-M2-T is ready for wherever your operation takes you.

      High speed. Wide coverage. Reliable connection.

      Product Specifications
      CPU Main Chipset IPQ8072A 4Core ARM Cortex A53s CPU, 2.2GHz Frequency, 2.4G WIFI Chipset: QCN5024, 5.8G WIFI Chipset: QCN5054
      WiFi Chip Protocol: IEEE 802.11n/g/b/a/ac/ax; Wi-Fi Rate: 2.4GHz MAX1147Mbps, 4T4R / 5.8GHz MAX 2402Mbps, 4T4R/MAX3549Mbps
      RAM DDR4 1GB (Option 256MB, 1GB), Support eMMC (Option 8GB, 256GB)
      Flash Nor Flash 16MB / SPI NAND Flash 128MB (Option128MB, 256MB)
      LAN Port 1*1000Mbps WAN Port, 4*1000Mbps LAN Ports; 1*DC 5.5*2.1MM Port; 1* Reset Button, 1*Mesh Button; 1*M.2 Slot, Supports USB 3.0 BUS; 1*SIM Card Tray; 12*Detachable High Gain SMA Antennas
      Color Black
      Dimensions (L×W×H) 204 × 182.2 × 75.48 mm
      Documents
      User Manual Download
      Specification Sheet Download
      Safety Guide Download

      Service & Support

      Inquiry-Within 24 hours
      Submit your router requirements and specifications. Our team reviews your request and provides preliminary feedback on feasibility and timeline.

      Solution Development-1-3 days
      We develop a customized solution based on your needs, including technical specifications, feature recommendations, and preliminary pricing.

      Engineering Design-3-7 days
      Our engineering team designs custom firmware, hardware improvements, and integration protocols specific to your application.

      Prototyping and Testing-7-15 days
      We manufacture prototype units and conduct comprehensive testing, including performance validation, compatibility checks, and quality assurance.

      Customization-3-10 days
      Fine-tune router configuration based on test results. Adjust specifications, optimize performance, and implement your branding requirements.

      Mass Production-15-30 days
      Begin full-scale production with quality control at every stage. We ensure consistency and reliability across all units.

      Delivery and Support-Ongoing support
      Ship your customized routers and provide comprehensive technical support, firmware updates, and warranty service throughout the product lifecycle.
