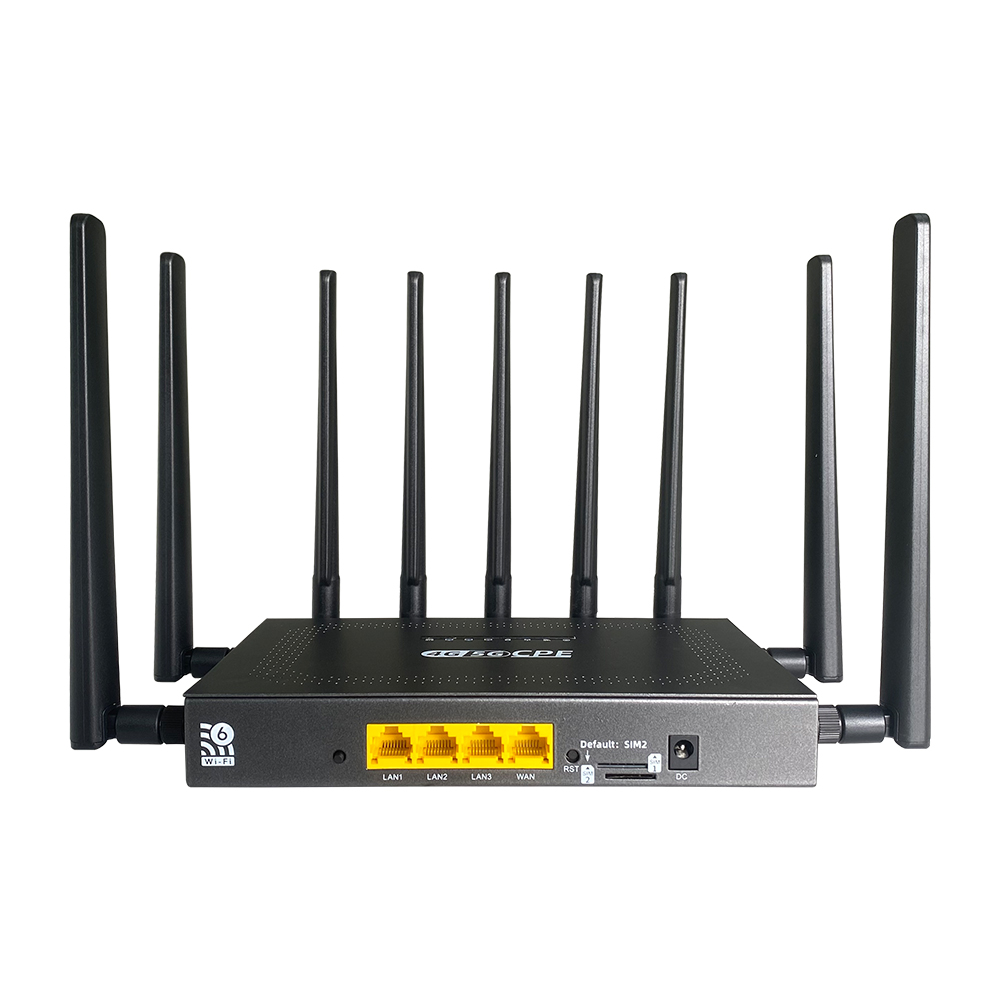

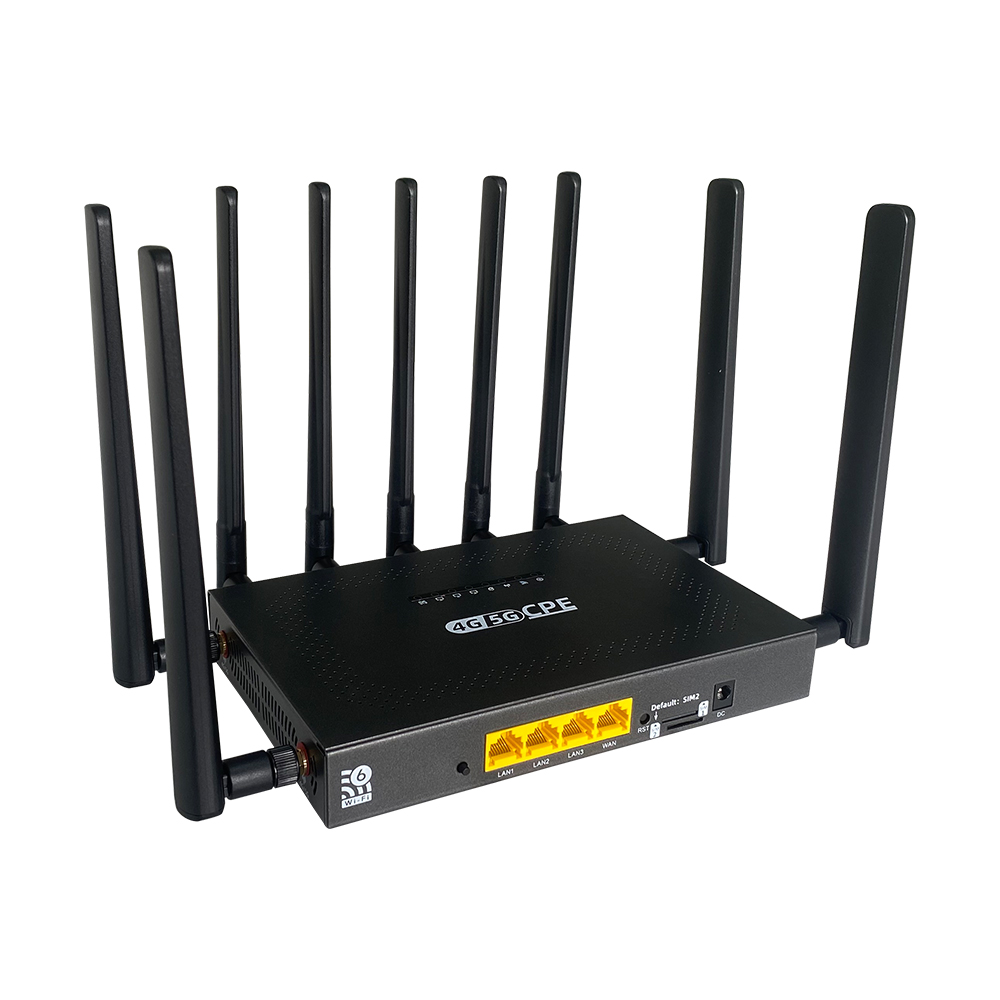

Z8105AX-M2-T2 is a 5G/4G+WiFi6 CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and share the Internet network through wireless WiFi 6 and 1000Mbps/2500Mbps wired LAN.
HARDWARE FEATURES |
CPU | ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ |

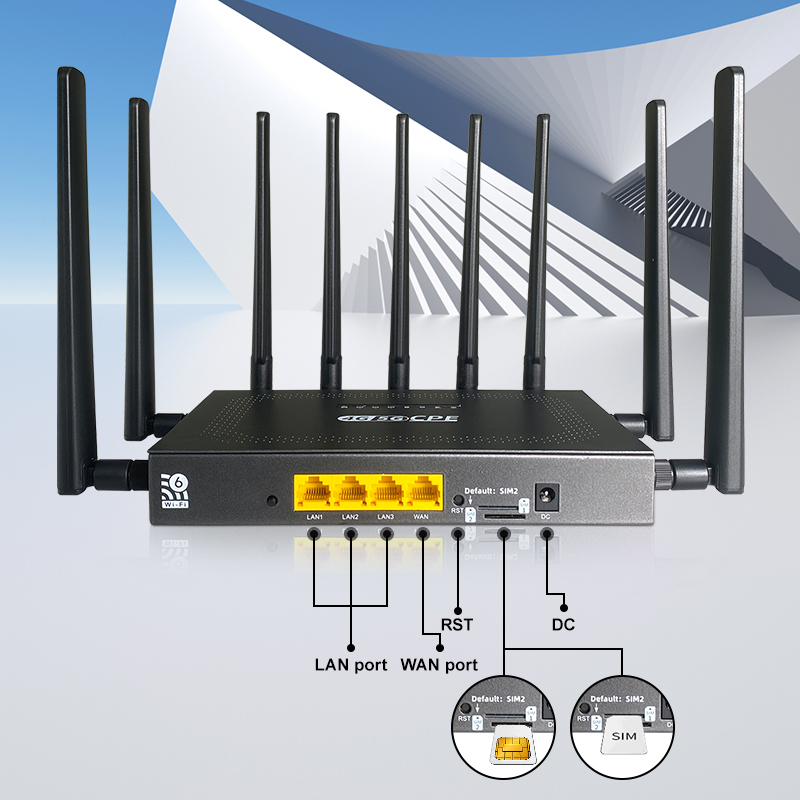

Interface | 1 * 1000/2500Mbps WAN Port
3 * 10/100/1000Mbps LAN Ports 1 * M.2 slot
2 * Nano SIM Card Slot |
Button | Reset Button |
External Power Supply | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12V DC 2.5A |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
Antenna | 9pcs Detachable High Gain Antennas |
WIRELESS FEATURES |
Wireless Standards | IEEE 802.11a/n/ac/ax 5.8GHz, IEEE 802.11b/g/n/ac/ax 2.4GHz |
Frequency | 2.4GHz and 5.8GHz |
Signal Rate | 600Mbps at 2.4GHz, 2400Mbps at 5.8GHz |
Wi-Fi Max.Associated Clients | 128 |
WAN Failover | Yes |
Wireless Security | WPA/WPA2, WPA-PSK |
SOFTWARE FEATURES |
Channel adjustment | Support |
Power adjustment | Support |
Parent control | Support |
SSID Hidden | Support |
Black list | Support |
Cloud management | Support |
NTP | Support |
DHCP | Support |
VPN | Support |
Elevate Your Connectivity with Z8105AX-M2-T2: Unleashing the Power of 5G and WiFi 6
Seamless Connectivity: The Z8105AX-M2-T2 Advantage
Experience unparalleled connectivity with Z8105AX-M2-T2, a versatile 5G/4G+WiFi6 CPE router designed to revolutionize your internet experience. Whether accessing the internet through 5G/4G mobile communication or a 1000Mbps WAN port, this router ensures seamless connectivity, allowing you to stay connected effortlessly.
Power-Packed Hardware for Superior Performance
Equipped with an ARM Cortex-A53 dual-core CPU clocking at 1.3GHz and boasting 256MB DDR3 RAM along with 128MB NAND Flash, the Z8105AX-M2-T2 delivers unmatched performance. Its hardware features, including multiple LAN ports, M.2 slot, and Nano SIM card slots, offer versatility and expandability for various networking needs. With nine detachable high-gain antennas, this router ensures robust signal strength and coverage for uninterrupted connectivity.
Advanced Software Features for Ultimate Control
Take control of your network like never before with Z8105AX-M2-T2's advanced software capabilities. With support for OpenWRT and ZBT OS, users can customize and optimize their network settings effortlessly. From channel and power adjustments to parental controls and VPN support, this router empowers users to tailor their network to their specific requirements, ensuring optimal performance and security.
